- All vital navigation information in one place
- Very simple and straight forward in use
- Can also use the official ENC chart data
- Easy updating
- Flexible software with many options.
Electronic record books for ships
TELSCOPE is a comprehensive solution for electronic record books, checklists and future e-navigation services. TELSCOPE electronic record books are type approved by DNV, in accordance with ISO 21745 – Electronic record books for ships, and DNV’s own class requirements. The solution is in line with SOLAS and MARPOL.
Plotter for professional fisheries
Professional PC-based software with "all" functions regarding fisheries and navigation. Full fisheries functionality with 2D / 3D and personal bottom generator. Advanced integration with Furuno radar, sonar and WASSP multibeam sonar.
Les mer om TimeZero Professional her... Trykk her for å be om tilbud på TimeZero Professional v4
Ny BarentsWatch funksjonalitet! Siste oppdatering inkluderer ny BarentsWatch funksjonalitet. Enkel inn- og utmelding av bruk Presentasjon i kartet av redskapsdata og jobbmeldinger, med ett enkelt tastetrykk BarentsWatch funksjonen er tilgjengelig, kostnadsfritt, for alle som har oppgradert til TimeZero Professional v4. Kunder med eldre versjoner må oppgradere for å få tilgang til denne funksjonen. Oppdater din...
Les mer om TimeZero Professional her...
Search light
High-powered (800-watt) searchlight featuring a unique optical design which utlilizes a Xenon lamp half the size of traditional searchlights. The Trakkabeam A800M delivers a more intense and consistent beam where you need it. Trakkabeam includes the industry’s only in-transit, multi-filter solution. Up to six different filters can be activated at the touch of a button from the bridge.
DO-160E er testet og sertifisert for ytelse og pålitelighet på en robust marine plattform, inkludert lynnedslag, vibrasjon, AF og RF følsomhet, magnetisk effekt og mer.
Trawl sonar TS-331A
Vertical scanning sonar 180/360 ° (or other sectors). dual frequency vertical sonar, 330kHz, 10-250 m scale. Sounder: 120 kHz, 50-300 m scale. Digital signal processing, Windows based. Operated with mouse/trackball. Full Windows layout with many own user settings. Temperature sensor. Depth sensor. Roll & Pitch sensor. Up to 4 Catch Sensor Interface. Approved for depths down to 2000 m. Voltage: 220V AC.
Trawl Sonar TS-337A
Omni trawl sonar with 360° scan with full tilt. 120 kHz frequency vertical sonar with integrated echosounder. User defined layout that can be saved. Includes temperature sensor, depth sensor, pitch & roll sensor and catch sensor interface for 1-4 catch sensors.
Television Antennas
Antennas for all type of vessels. Antenna size until 125 cm disc. GPS and automatic satellite search and identification of satellite.
Switch for distribution of TV signals on board also available.
Chart plotter with 16" multifunction touch display
Unique with multi-touch user interface. Integrates witn all Furuno DRS network radars. Includes 2-frequency CHIRP echosounder and is compatible witn 2 kW / 3kW CHIRP amplifier. Built-in WiFi. Free download of weather forecasts. Norwegian menu.
TZT2 BB med integrert ekkolodd
Denne kartplotteren med TimeZero teknologi vil gi deg en ny navigasjonsopplevelse! Den er også en ypperlig retrofit for MFD BB.
Unikt grafisk brukergrensesnitt med multi-touch. Den kan brukes med Furuno radar og ekkoloddmoduler. Innebygd WiFi. Kostnadsfri nedlastning av værprognoser direkte i kartet.
Chart plotter with 19" multifunction touch display
Unique with multi-touch user interface. Integrates witn all Furuno DRS network radars. Includes 2-frequency CHIRP echosounder and is compatible witn 2 kW / 3kW CHIRP amplifier. Built-in WiFi. Free download of weather forecasts. Norwegian menu.
NavNet TZTouch 9
This 9" display has edge-to-edge glass which makes it look very clean and stylish. The LED backlightning pushes light through every pixel on the screen for remarkable brightness. Anti-reflective glass coating is visible under any lightning condition.
Kartplotter med LCD multifunksjonsskjerm
Unikt grafisk brukergrensesnitt med multi-touch. Kan integreres med Furuno DRS NXT og X-class nettverksradar og Furuno ekkoloddmoduler. Innebygd WiFi. Kostnadsfri nedlastning av værprognoser som presenteres over kartet. Norsk meny.
Easy access to your VDR data
Simplified VDR VR-7000S collects ship and sailing data in accordance with government requirements. VDR data provides an overview of the sequence of events within a specific period of time. Often, VDR data contributes directly to the identification of the causes of unwanted events. VR-7000S VDR data is easily retrieved from the data collection unit (DCU) to a USB flash memory. Using an of-the-shelf pc or laptop with the VR-7000 Live Player software installed, VDR data can be replayed in a convenient and user-friendly format.

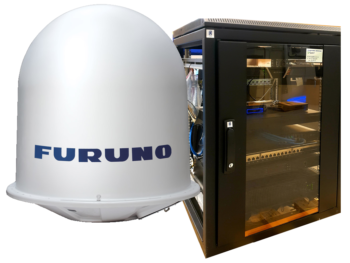

Furuno VSAT
VSAT is offered as a subscription where bandwidth and all necessary equipment on board is included in the subscription agreement. Secure access to Furuno equipment for remote service can be included in the subscription. Secure access can also be configured for other 3rd party equipment. Installation and on-board service is coordinated by Furuno Norway and performed locally by our dealers, for the fastest possible service.
Multi beam echo sounder (120 - 200 kHz)
WASSP is the first product to bring the benefits of multibeam technology to commercial fishing. Providing unparalleled views of the water column and the seafloor, WASSP lets users accurately locate fish schools, profile the seafloor and map bottom hardness - all in 3D, all in real time.
For survey and mapping
It’s purpose-built for survey and mapping and has been designed with the entry level market in mind: budget, operational needs, and future technology roll-out.

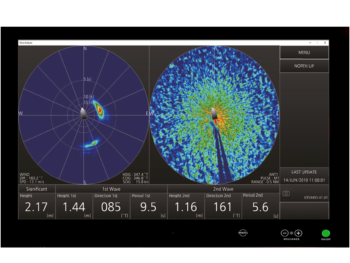

Wave radar for monitoring and analysis of waves
Furuno wave radar WV-100 uses raw echo data from the Furuno navigation radar to analyze sea surface echoes. The analysis results in a real time presentation of wave patterns and characteristics. Whenever wave heights exceeds defined threshold values for safe operation, an alarm is issued and a report log is created and may be used to document operational interrups.
X-band Doppler weather radar WR-2120 (dual-polarization)
The WR-2120 is our most advanced X-band Doppler weather radar. The dual polarization enables attenuation correction, increased detectability and expand the capability for a detailed high precision and localized weather detection. The radar uses doppler technology and gives accurate radial wind velocity measurements.
X-band doppler weather radar WR-110 (single-polarization)
The WR-110 use the same antenna as the WR-2120, but the vertical polarization – and processing channels are omitted. The result is a very cost-effective single polarization doppler weather radar, well suited for automatic operation.
WR-2100
With ultra high definition spatiotemporal resolution capability, the WR-2100 Dual Polarimetric Doppler Weather Radar grasps omni-directional precipitation intensity in 50-metre-mesh in six-second-interval. By conducting high spatiotemporal resolution monitoring of the development process, three-dimensional structure as well as movement of a cumulonimbus, which causes precipitation, the development of short localised rainstorms can be predicted. Moreover, the WR-2100 has been downsized during the development phase to the extent that can be classified as one of the smallest and lightest Dual Polarimetric Doppler Weather Radar available in the market.
